FRAMEO

design Jan Padrnos

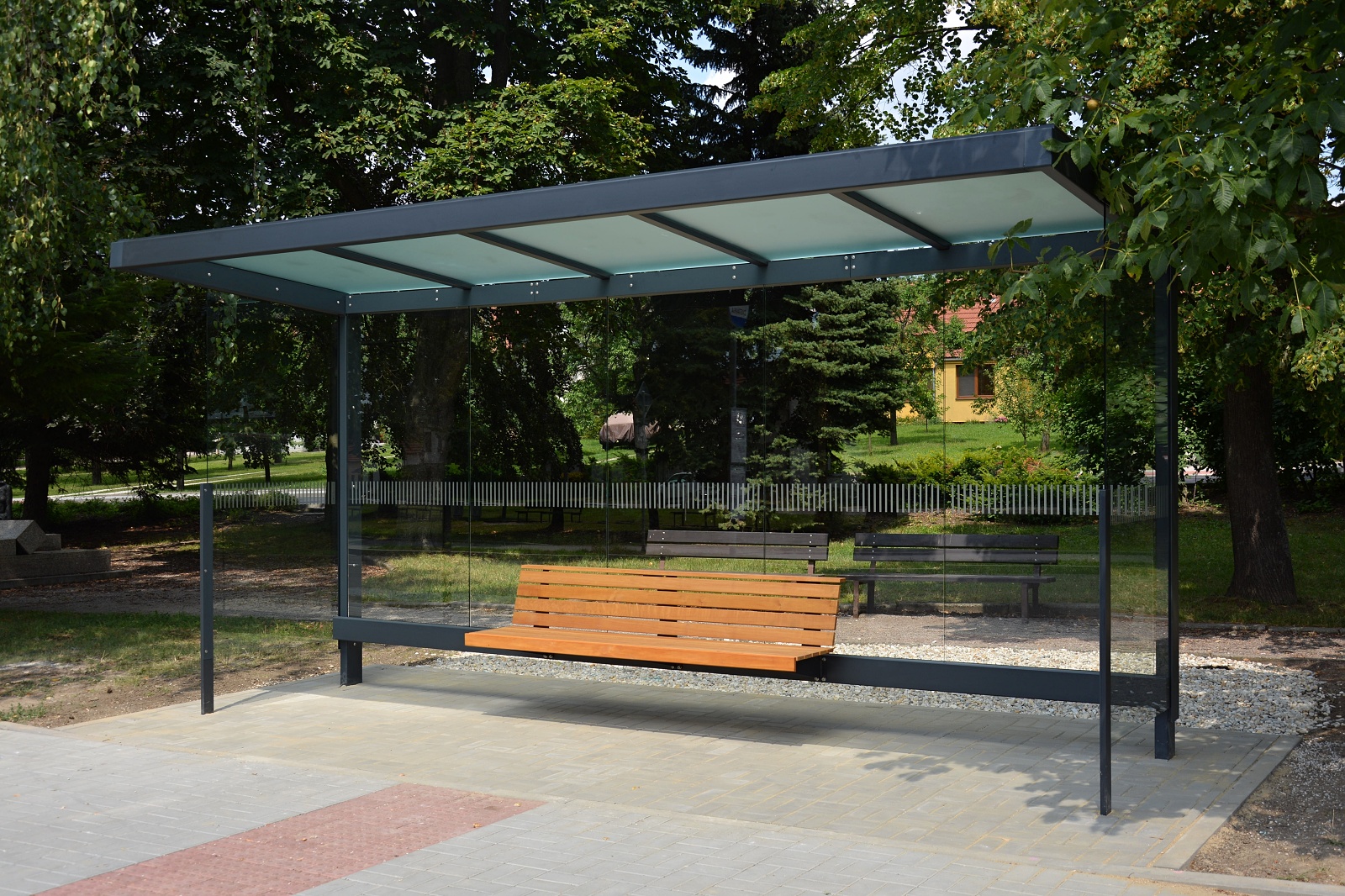

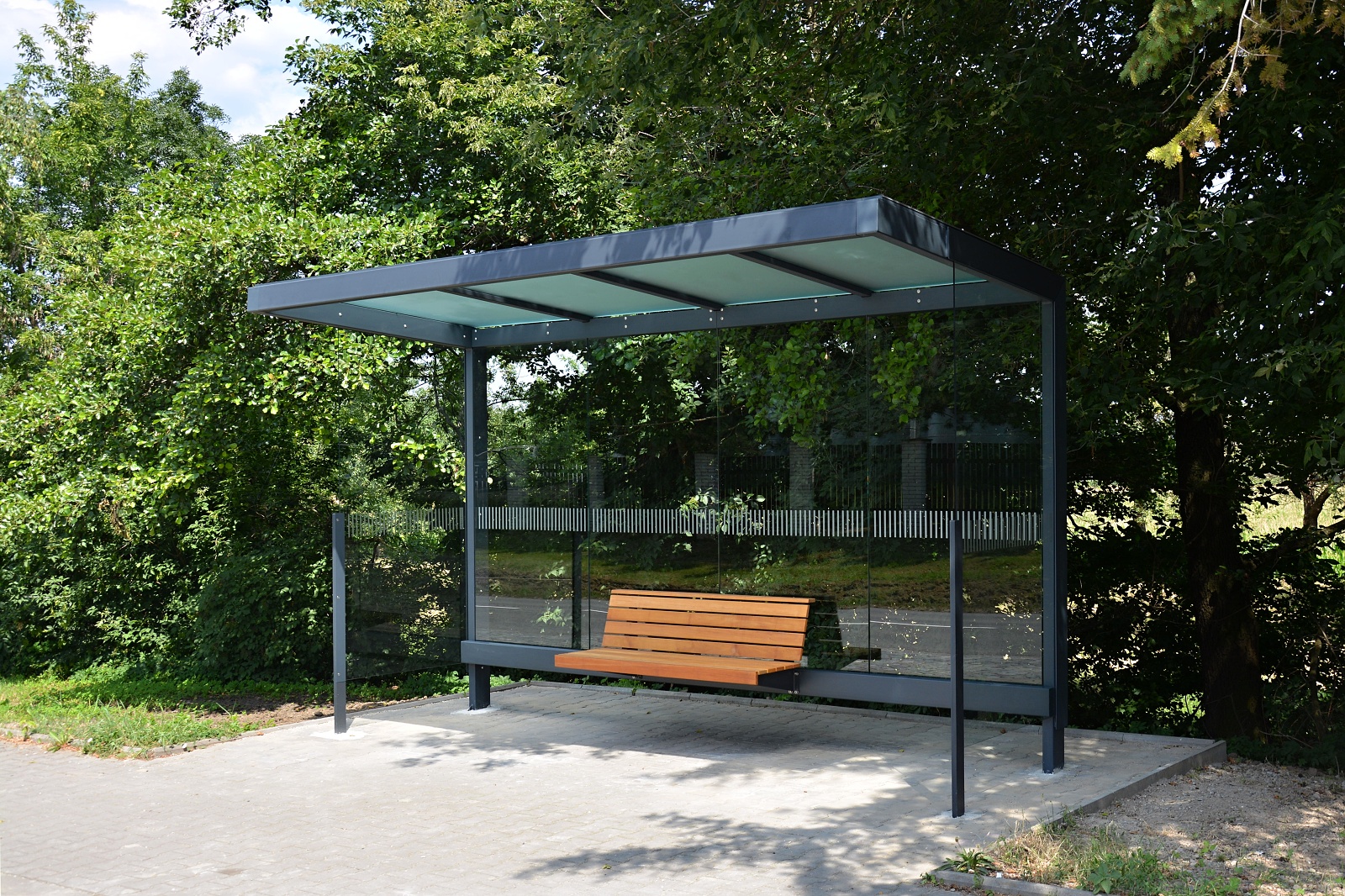

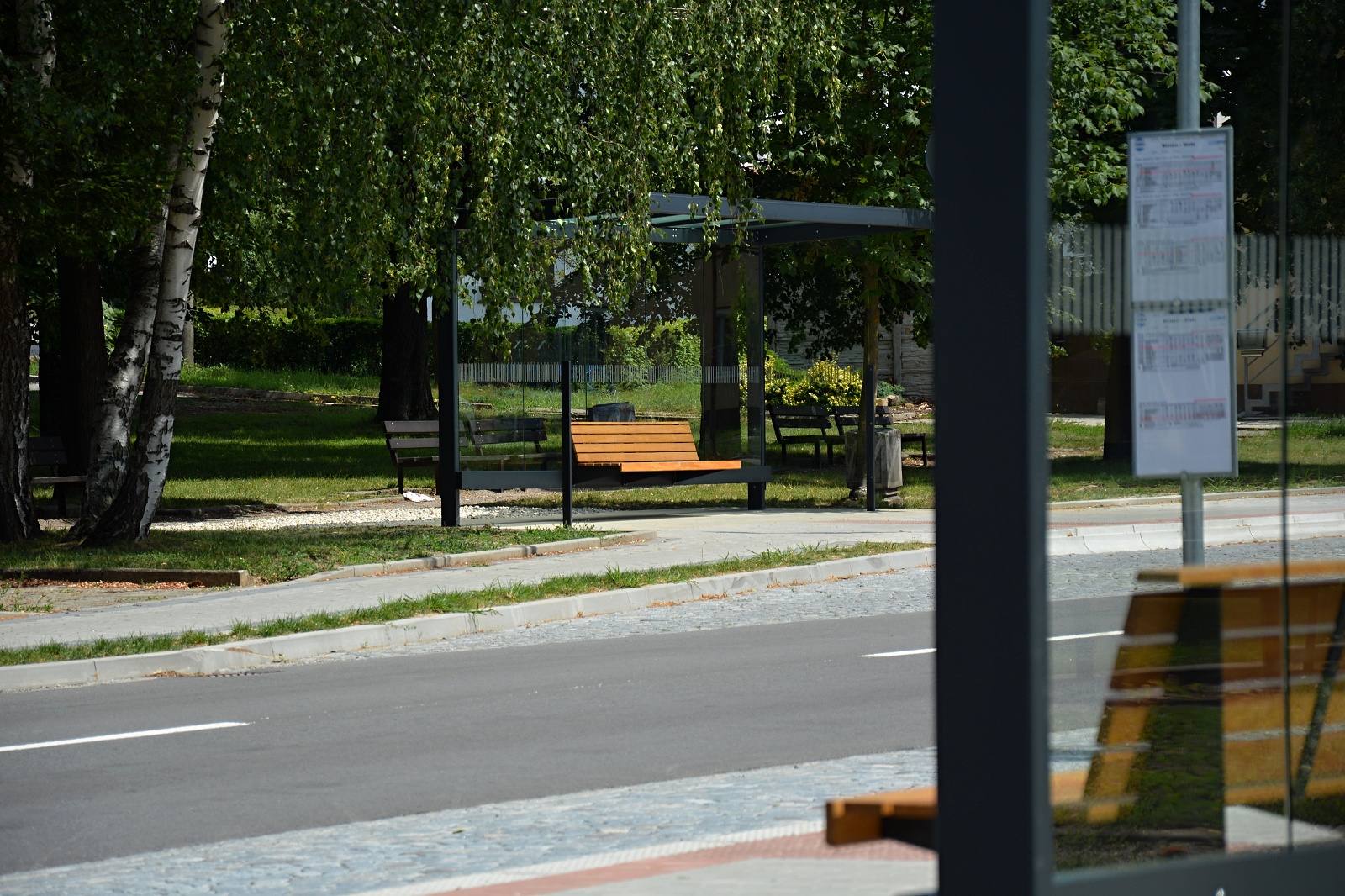

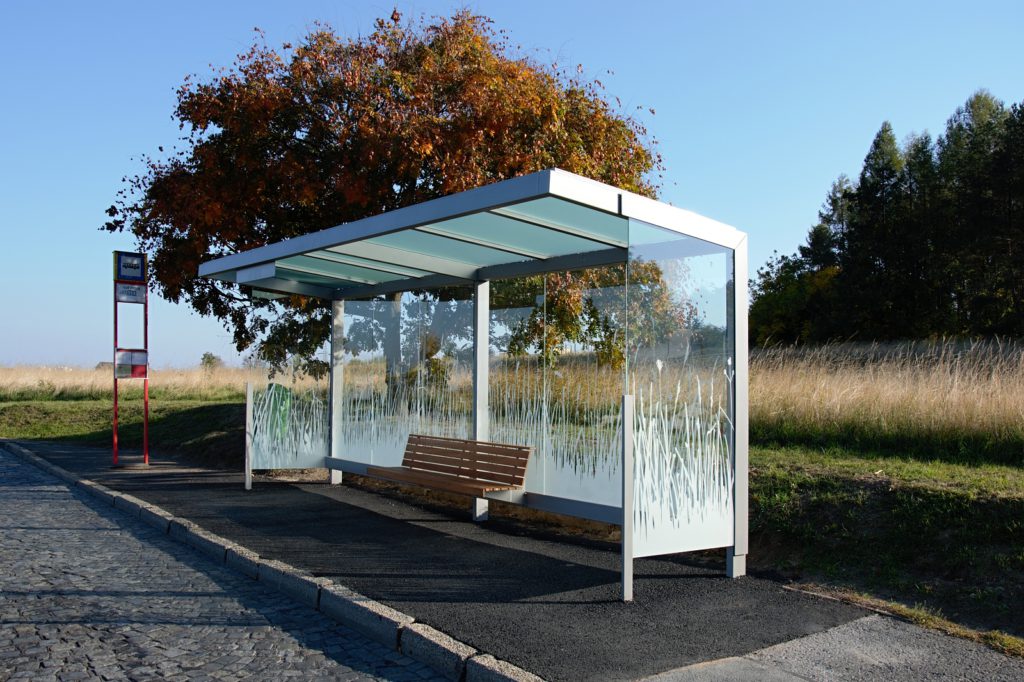

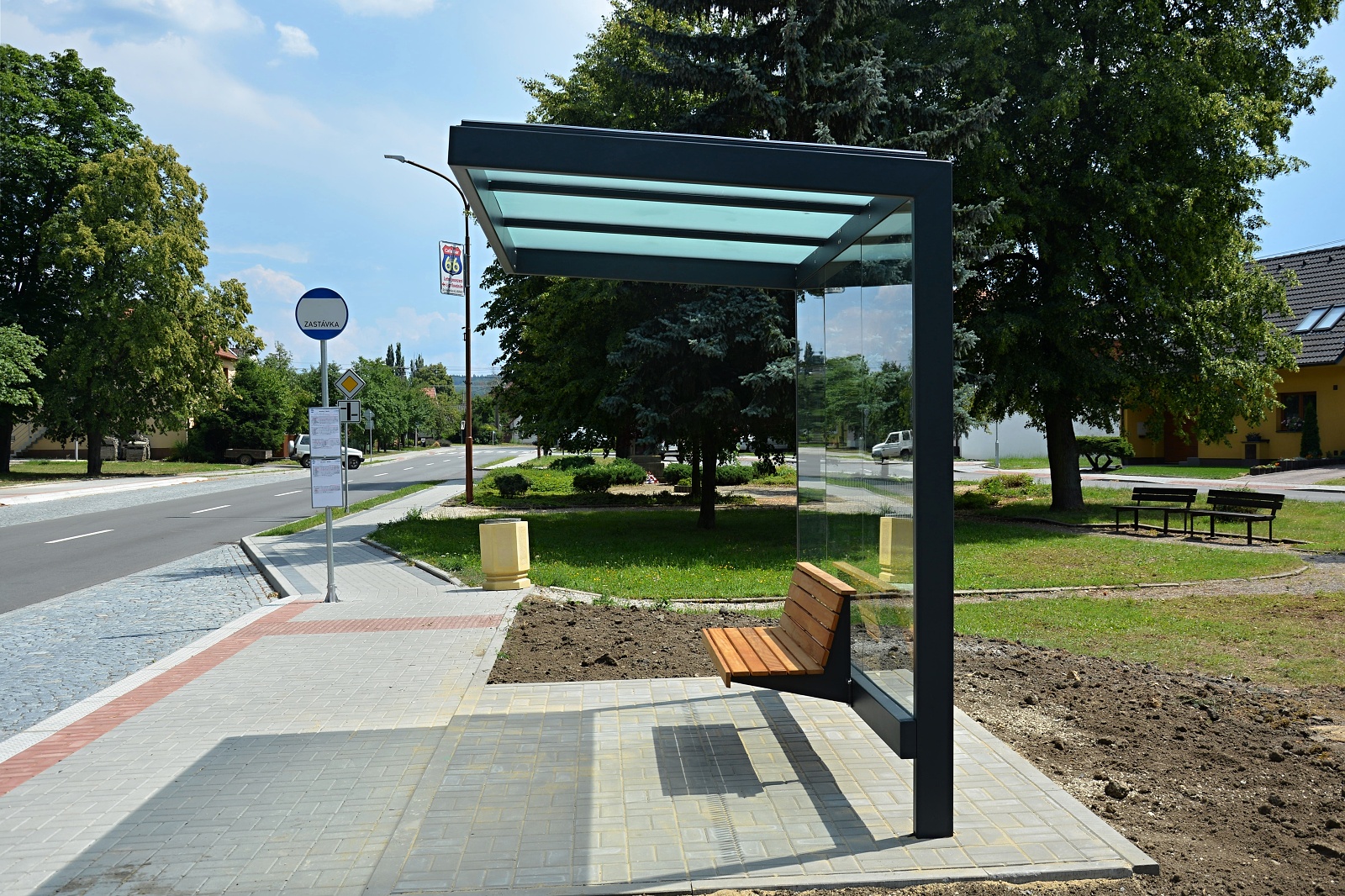

Modular bus shelter for bus stops meeting the aesthetic and functional demands placed on the modern city facilities in the 21st century. With its sophisticated minimalist design and almost transparent appearance, it is suitable especially for the exposed environment of busy city centers. The supporting structure of the bus shelter is formed by a massive frame made from steel profiles that support the roof and vertical glass panels, as well as a bench with its backrest. The bus shelter can be completed with one or two side panels or the CITYLIGHT advertising panel. The water from the roof structure is drained through the rear feet above the terrain.
The supporting structure is made from galvanized steel and is treated with powder coating. The wall panels are made from safety hardened glass. The roof is made from safety tempered glass available in the SATINATO design. It is attached through aluminum profiles to the roof structure. The bench is made from solid wooden lamellas of rectangular and trapezoidal sections attached to the supporting bracket structure with the stainless steel screws. The flanges at the bottom part of the bus shelter are used for hidden anchoring to the base below the ground level.

Design based on type
ZPF301

ZPF301

ZPF302

ZPF302

ZPF401

ZPF401

ZPF402

ZPF402

ZPF601

ZPF601

ZPF602

ZPF602

Metal parts options
Download PDF sampler

RAL 7016

RAL 9005

RAL 9006

RAL 9007

Wooden parts options
Download PDF sampler

Tropical w.

Panelling options
Download PDF sampler

Satinato glass

Dimensions L×W×H
3120×1805×2536 mm 3152×1805×2536 mm 4120×1805×2536 mm 4152×1805×2536 mm 6180×1805×2536 mm 6212×1805×2536 mm

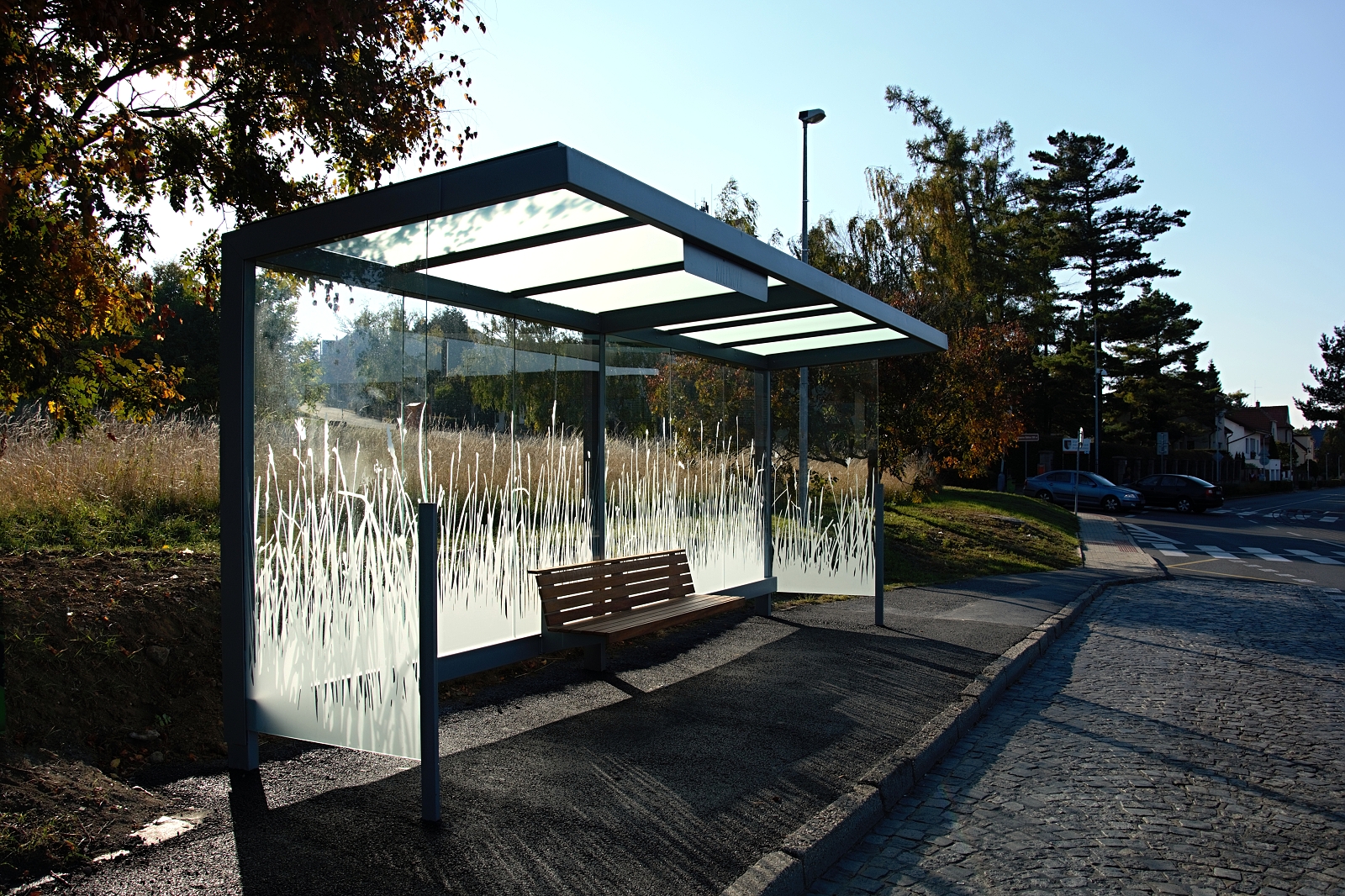

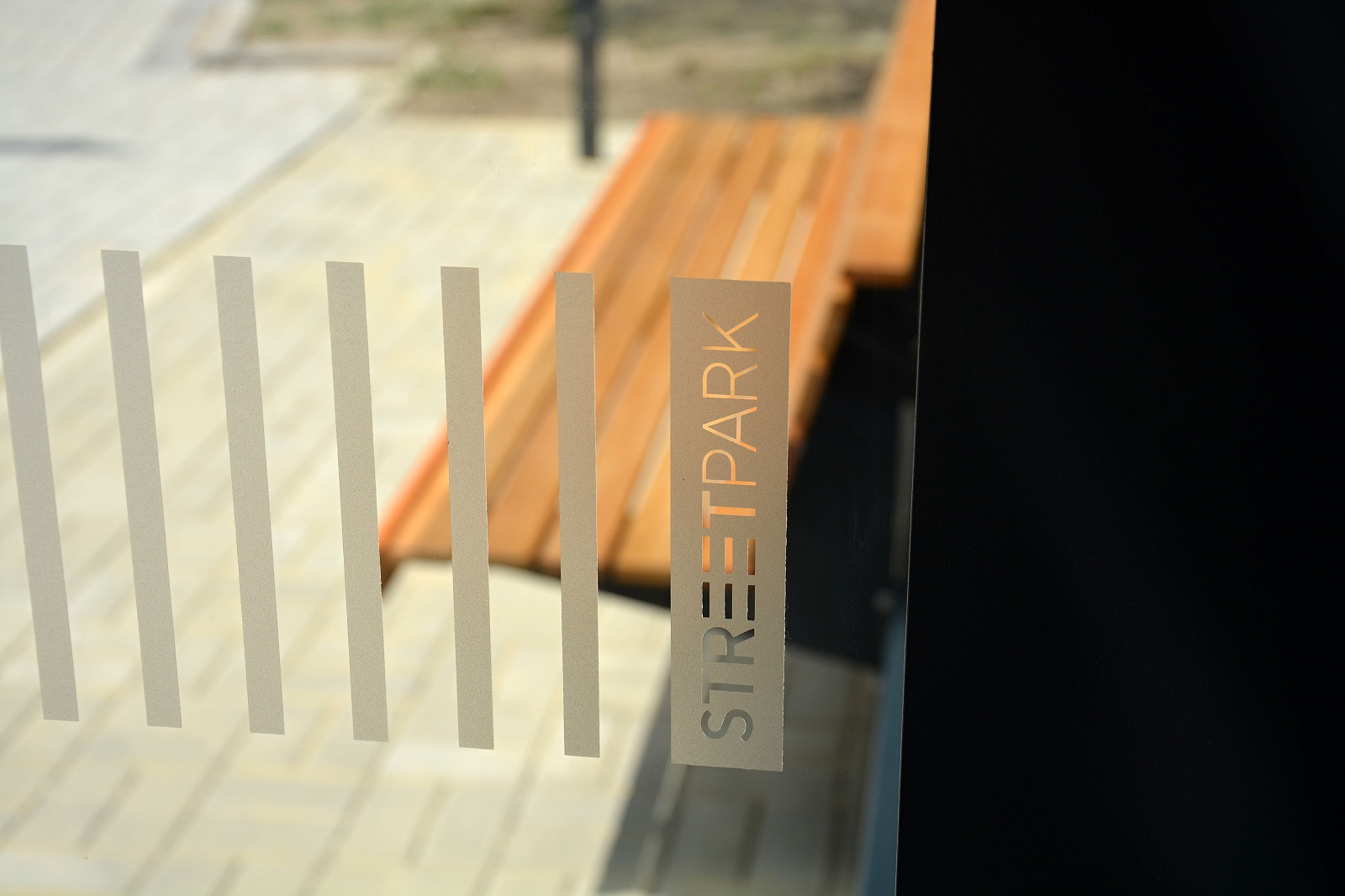

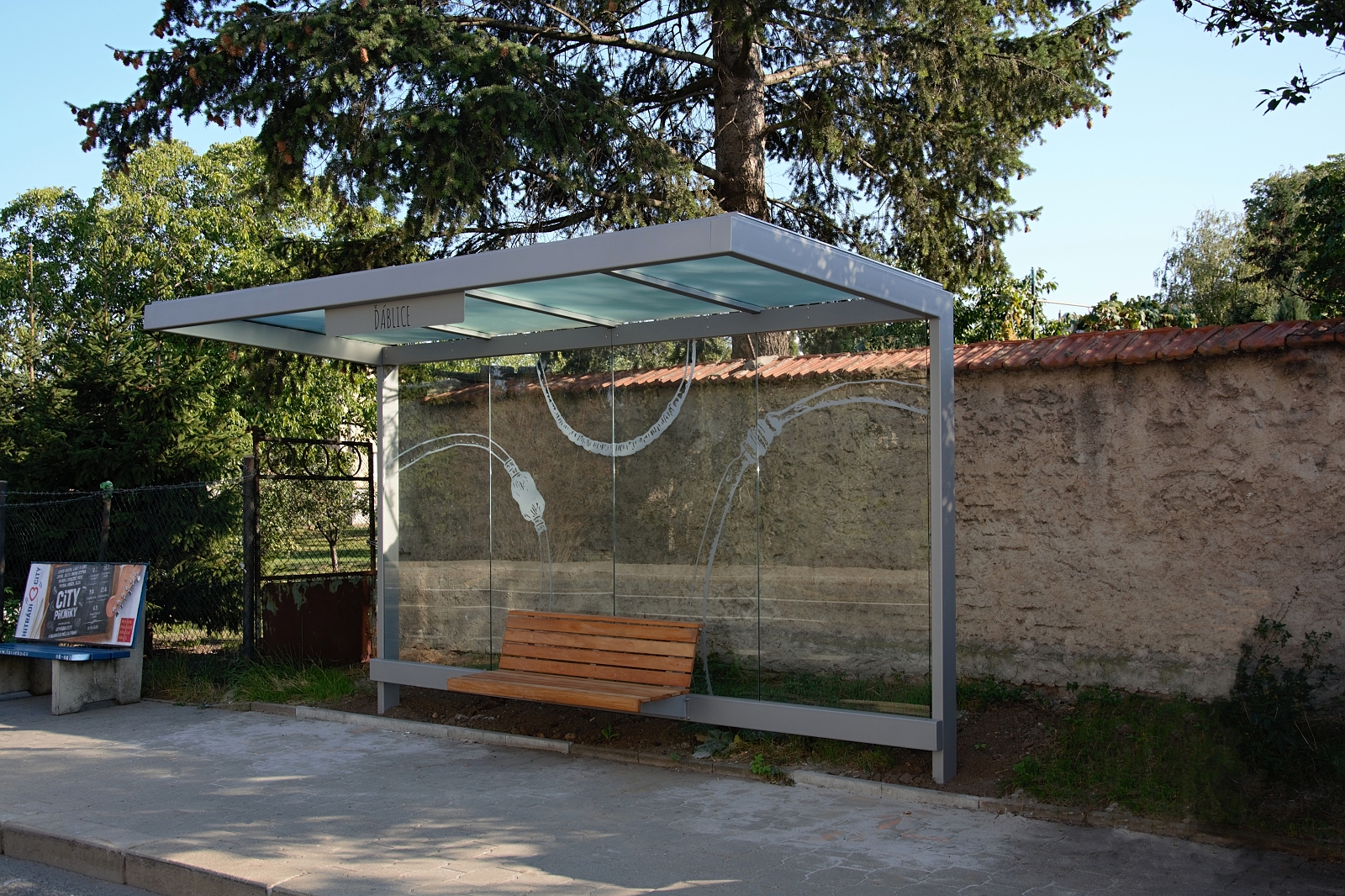

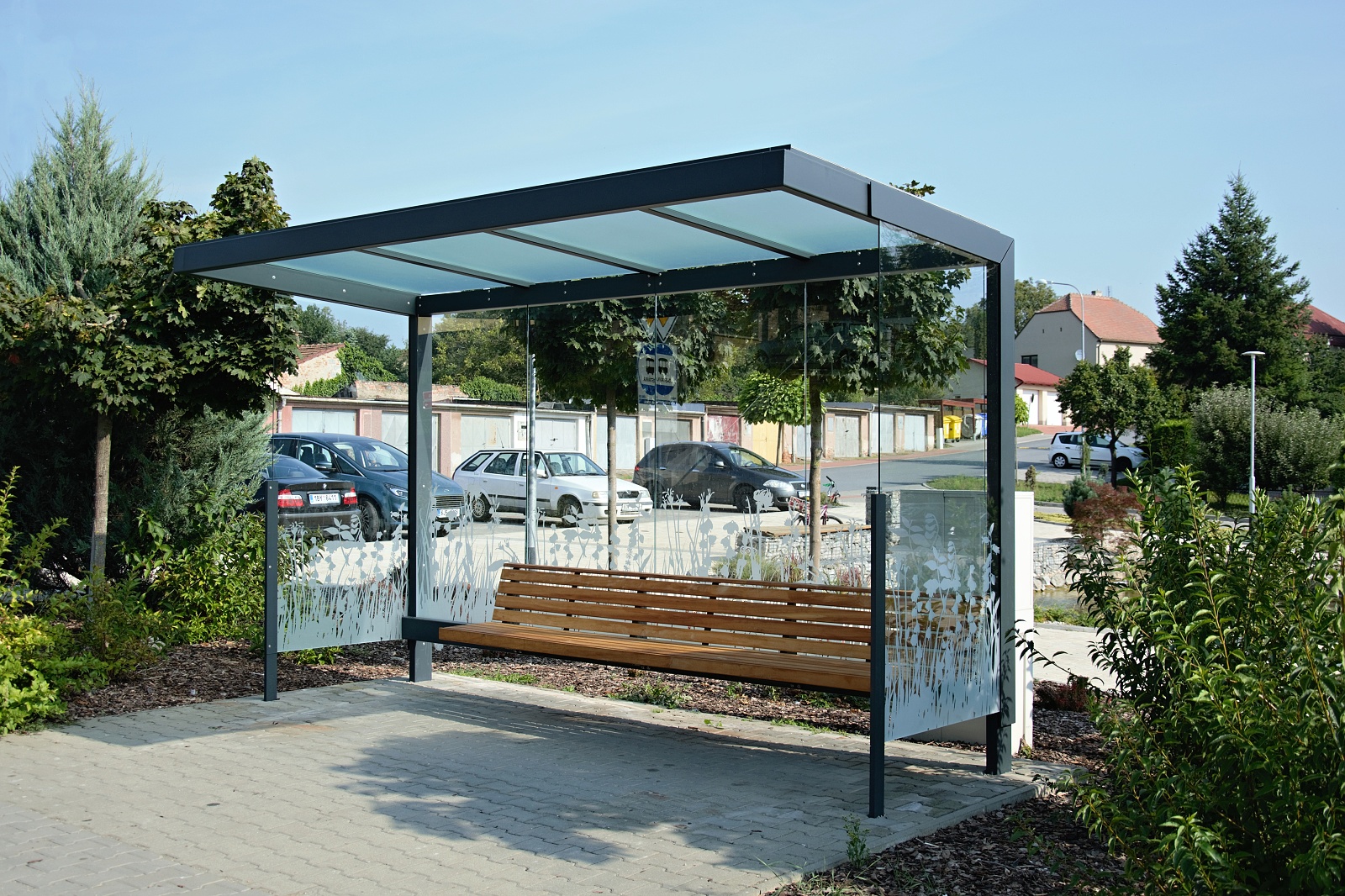

Patterns on the glass panels are made by sandblasting.
1
Elegant design
The bus shelter of the latest and minimalist design that is suitable for modern architecture, as well as it can be used as a contemporary accessory in the historic environment.
2

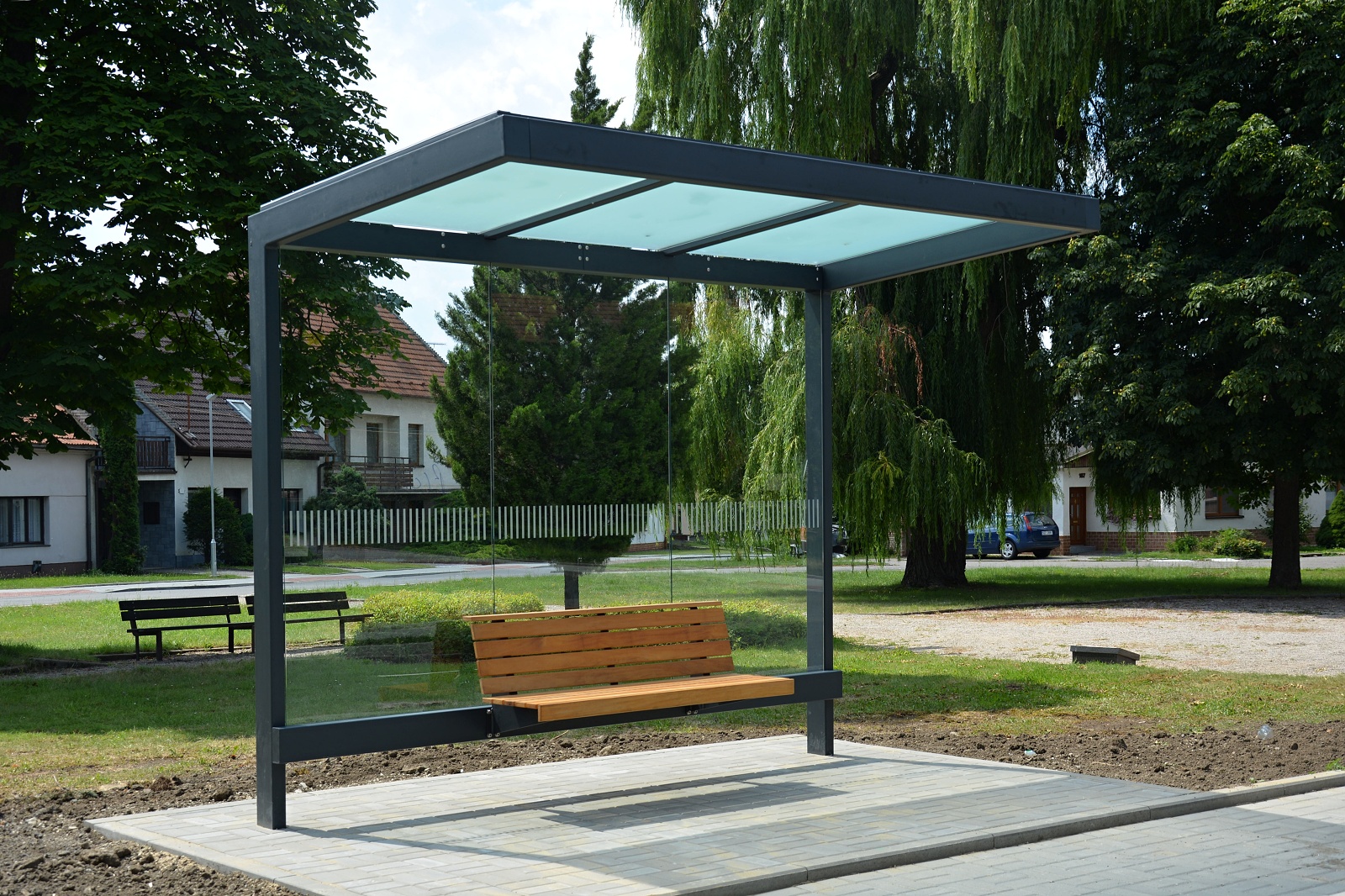

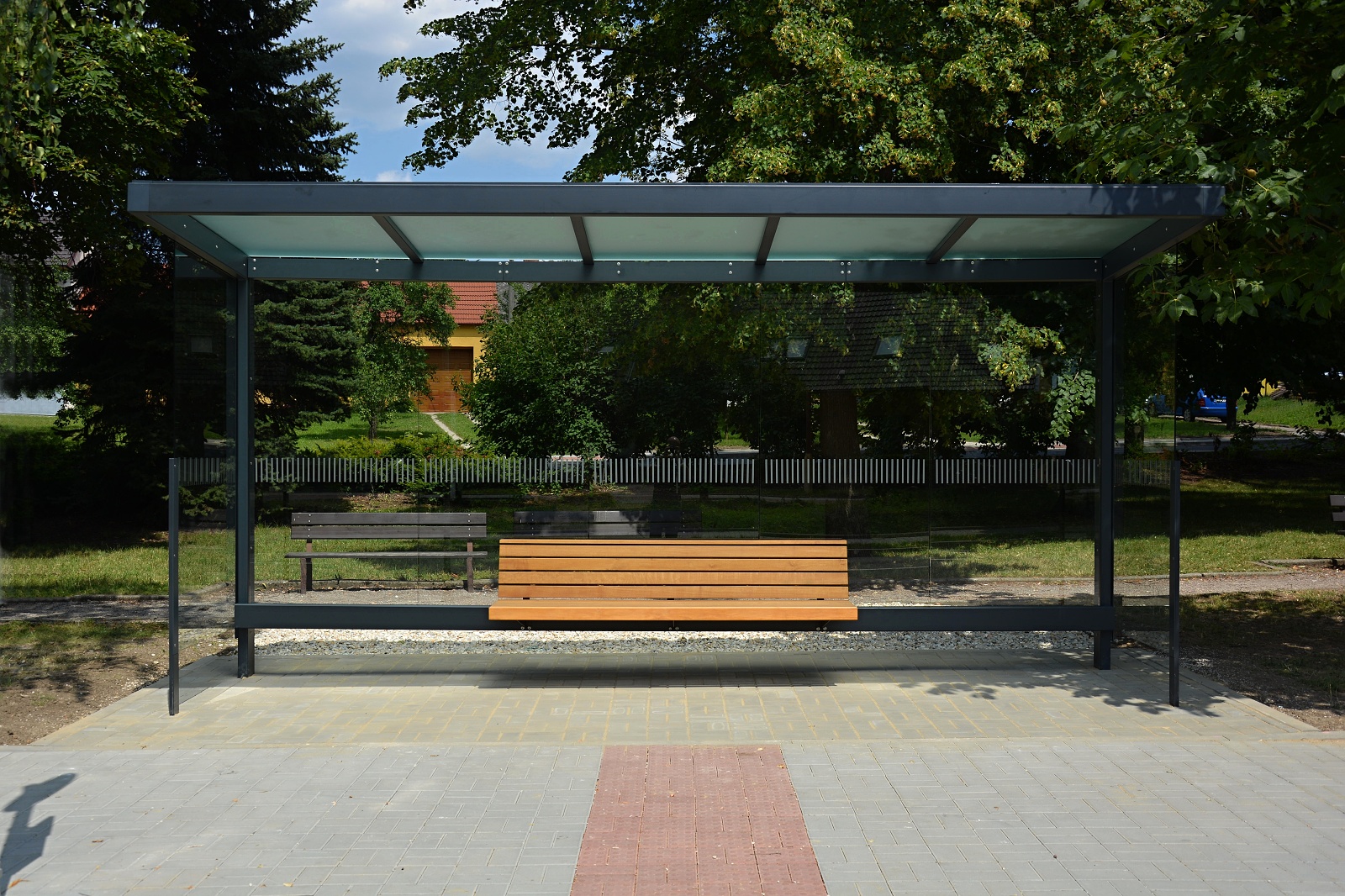

Bench with backrest
The only bus shelter from our collection standardly equipped with a bench including a backrest.
3
Double-sided version
The structure also allows two-sided designs that are suitable, for example, for the installation at bus stations.
