LXL
design Jan Padrnos

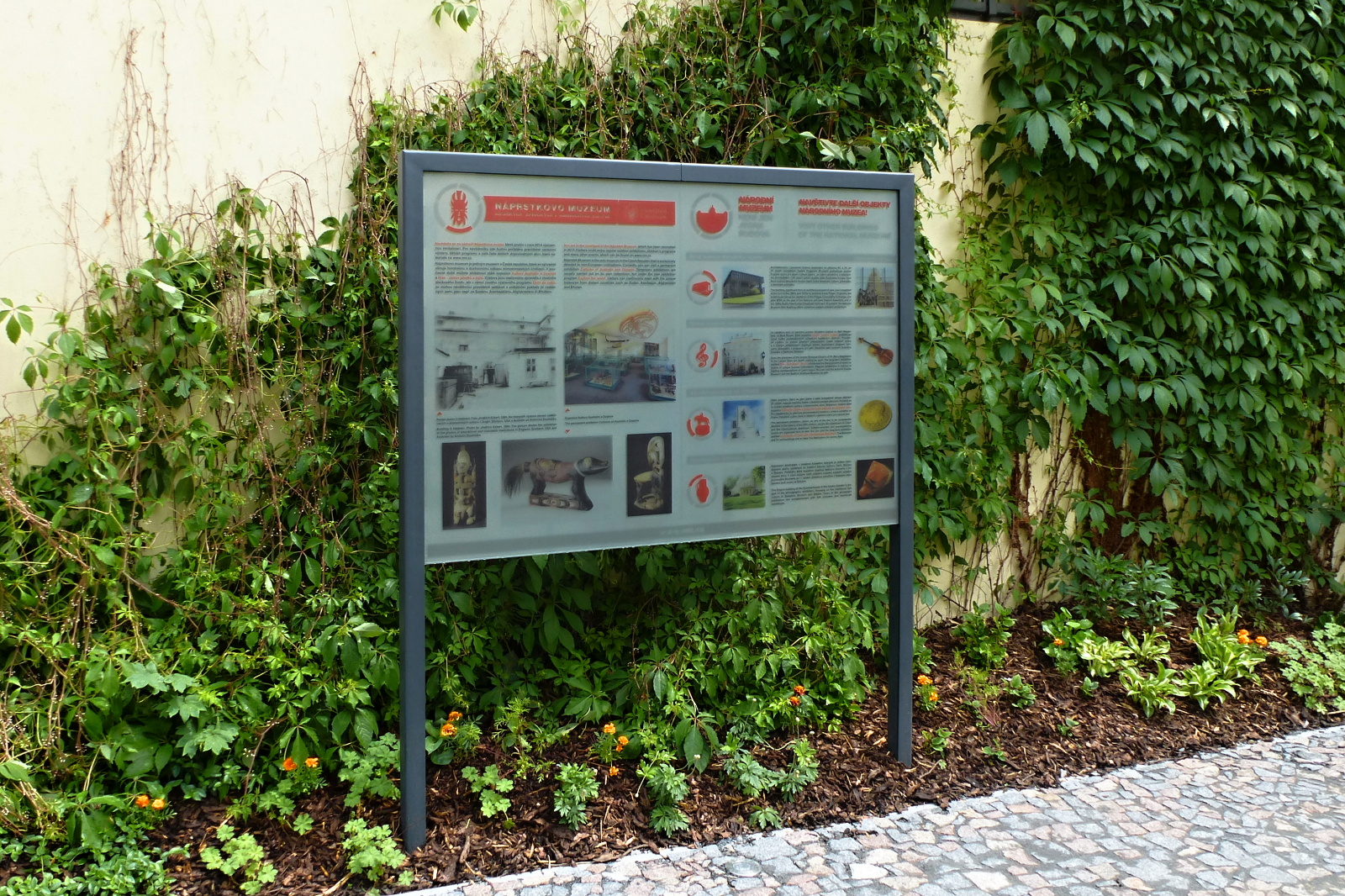

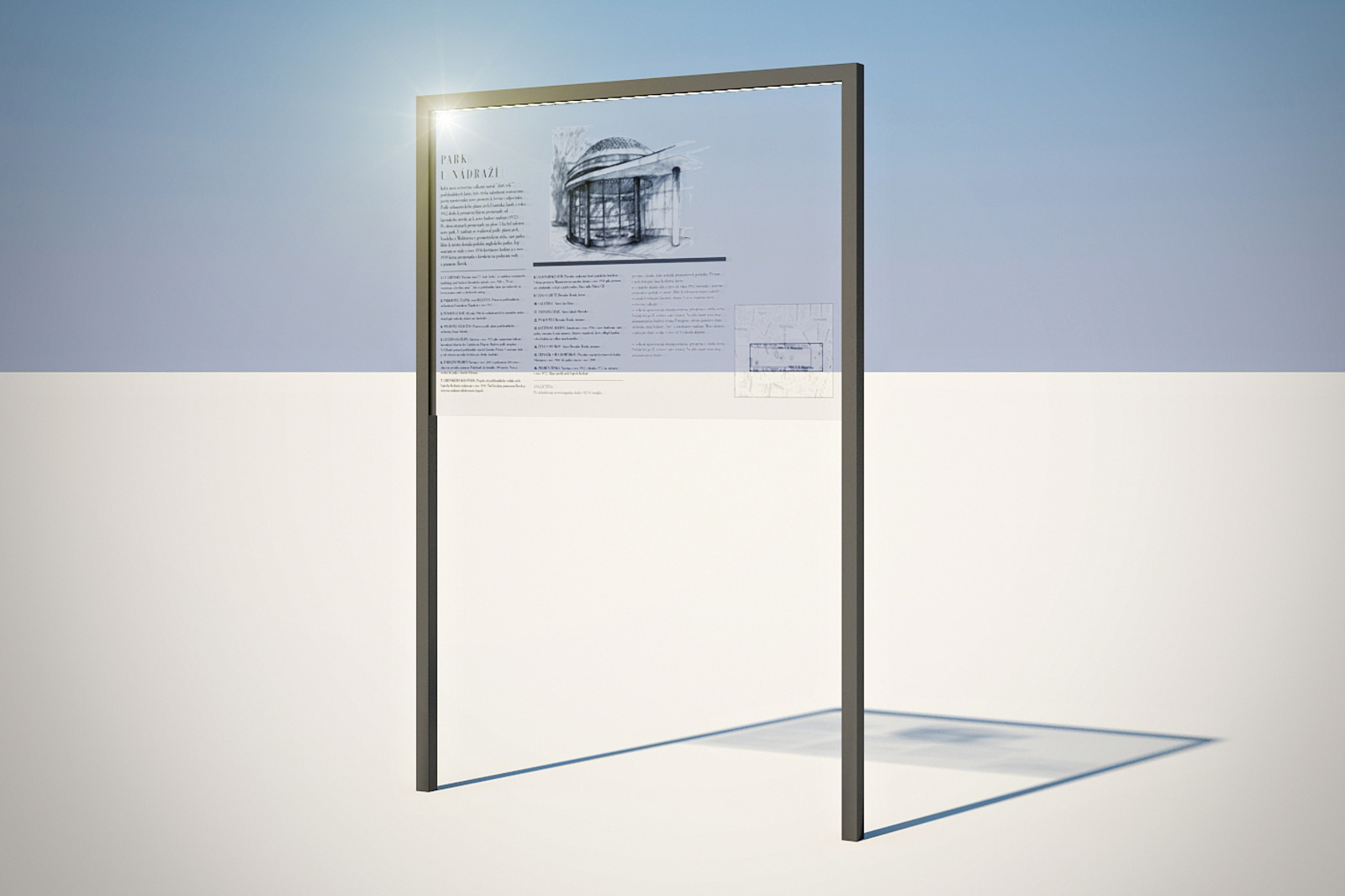

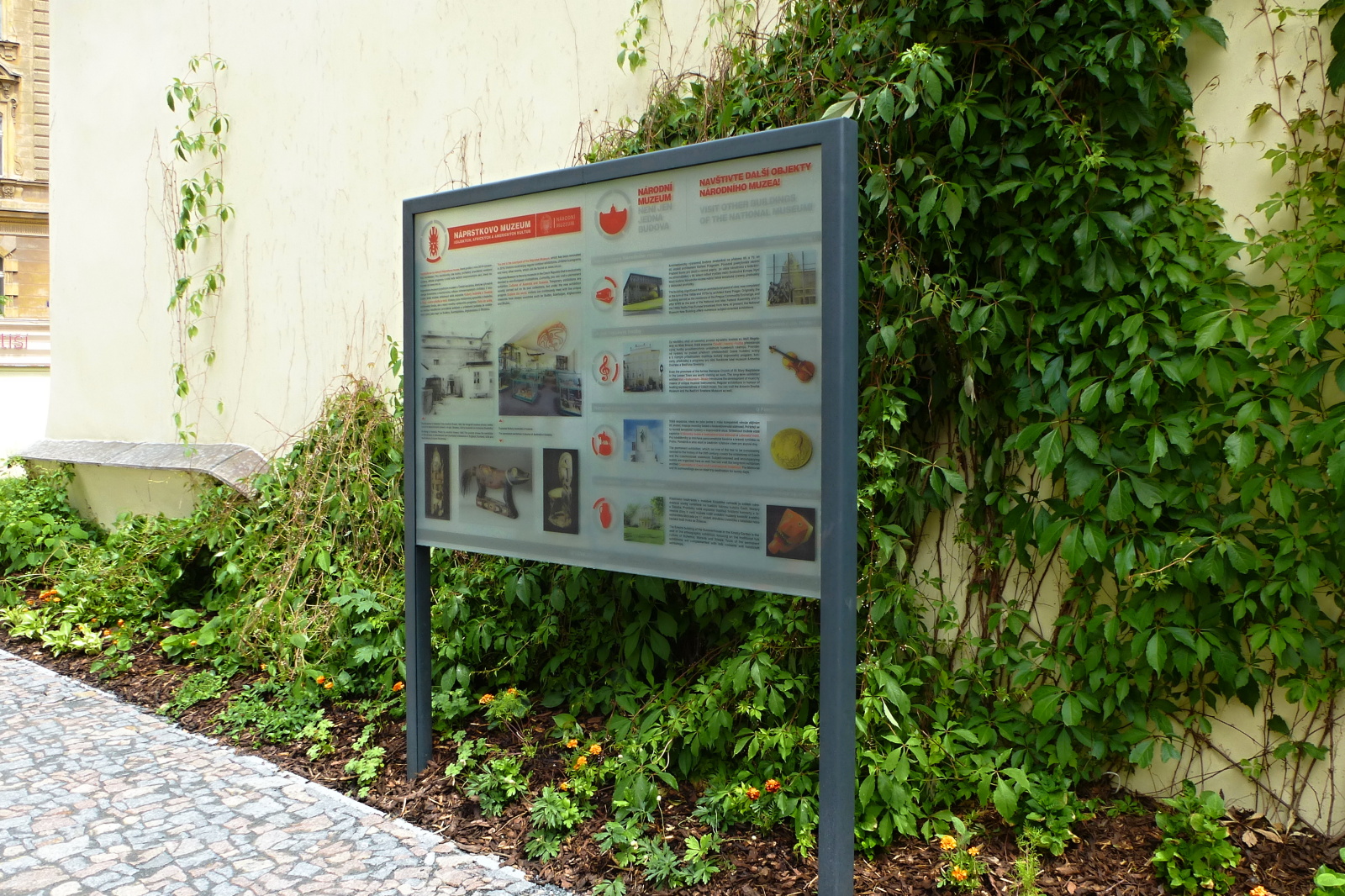

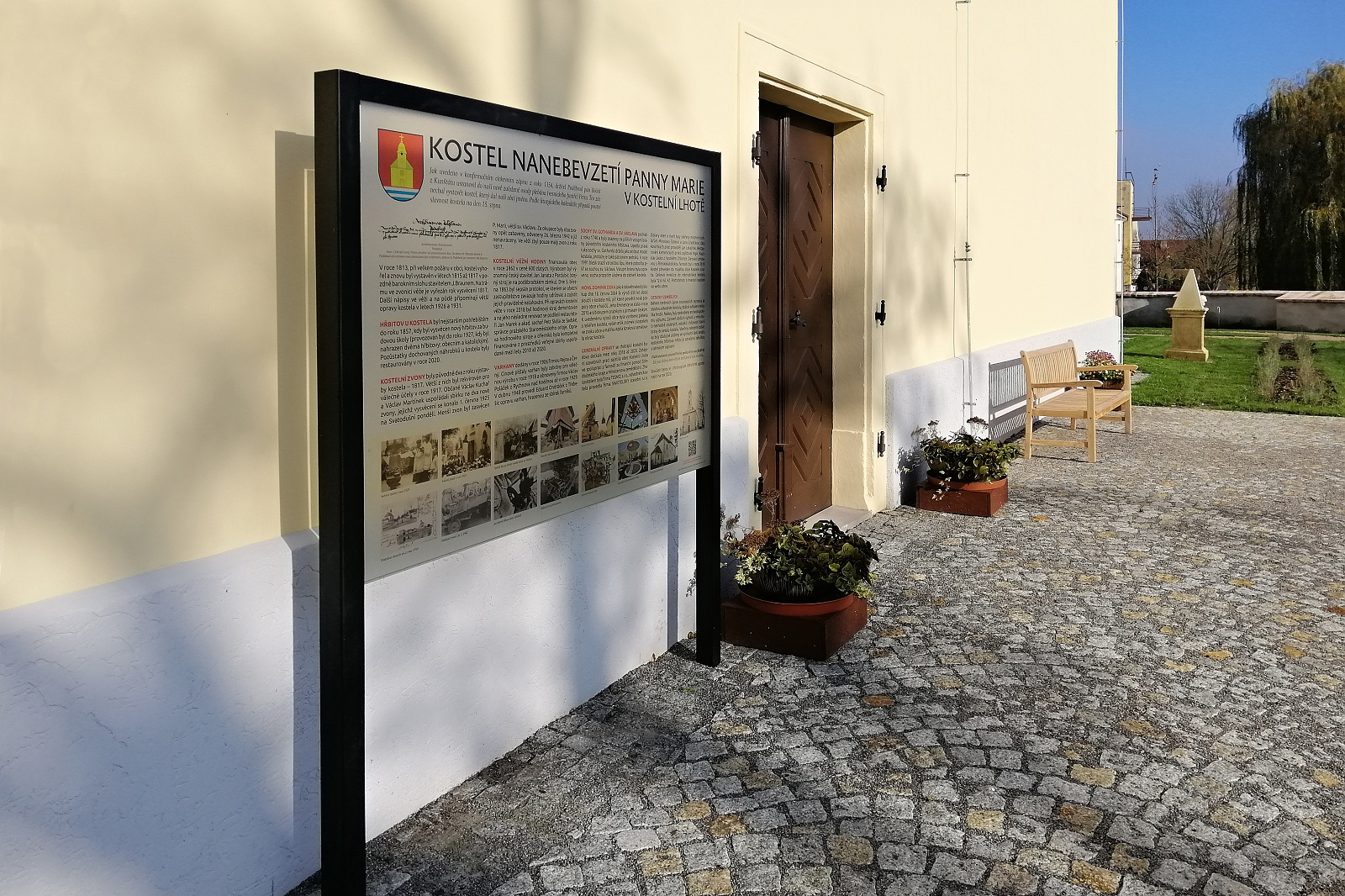

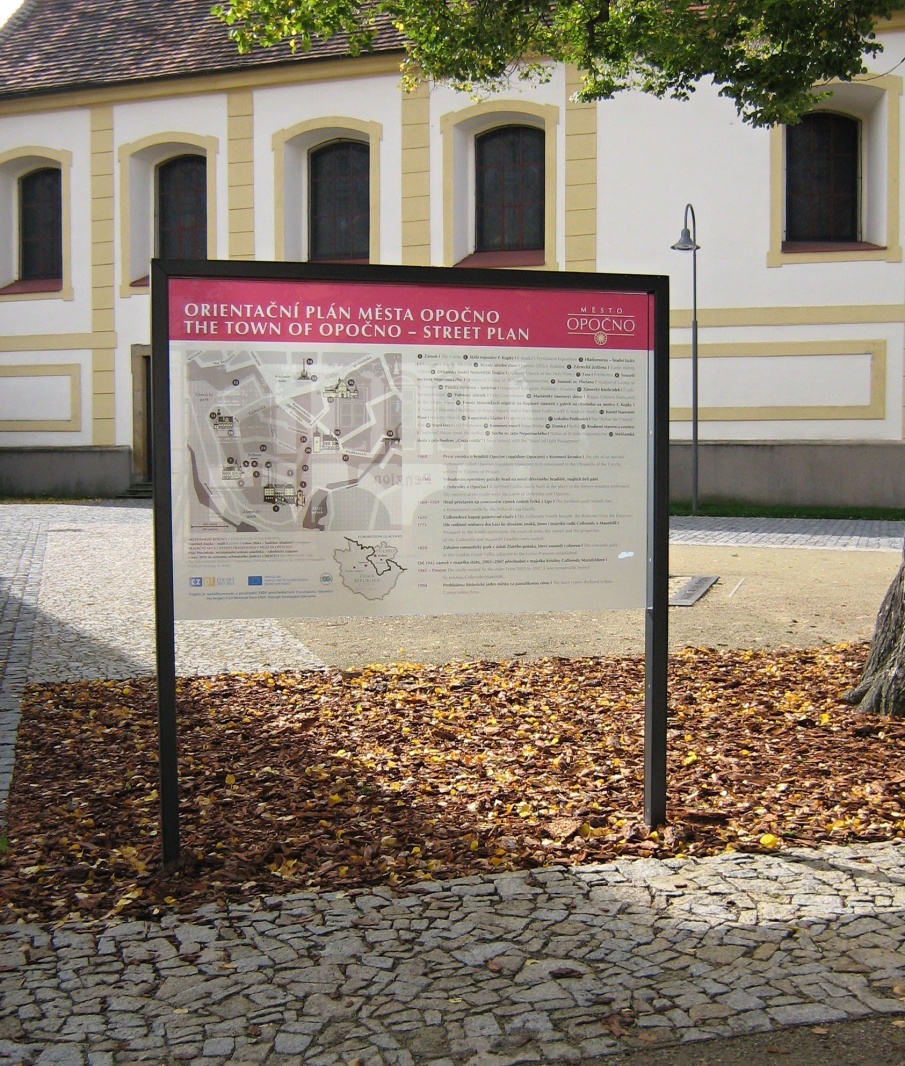

Information board of the minimalist design. The original information board for text or image formats is made of glass. It is also suitable for historical and listed buildings due to its minimal design with hidden details of glass fitting. The LXL2 variation has integrated LED illumination.
The supporting structure made of galvanized steel is treated with powder coating. The toughened glass is ten – millimeter thick. At the bottom part of the structure frame, there are armatures including the holes for anchoring to the base below the ground level.
LXL1 - Files to download
LXL1 2D drawing (jpg)
LXL1 3D perspective (jpg)
You have to log in for downloading.
LXL 3D (rar)
LXL1 anchoring (rar)
LXL1 product data sheet (pdf)
Log in
Register
LXL2 - Files to download
LXL2 2D drawing (jpg)
LXL2 3D perspective (jpg)
You have to log in for downloading.
LXL2 3D (rar)
LXL2 anchoring (rar)
LXL2 product data sheet (pdf)
Log in
Register
Design based on type
LXL1
LXL2
Metal parts options
Dimensions L×W×H
1800×80×2100 mm
1800×80×2100 mm
It is possible to add LED lighting to the information board.
1
Elegant solution
The elegant information carrier is free of unnecessary components (visible connecting materials, etc.).
2

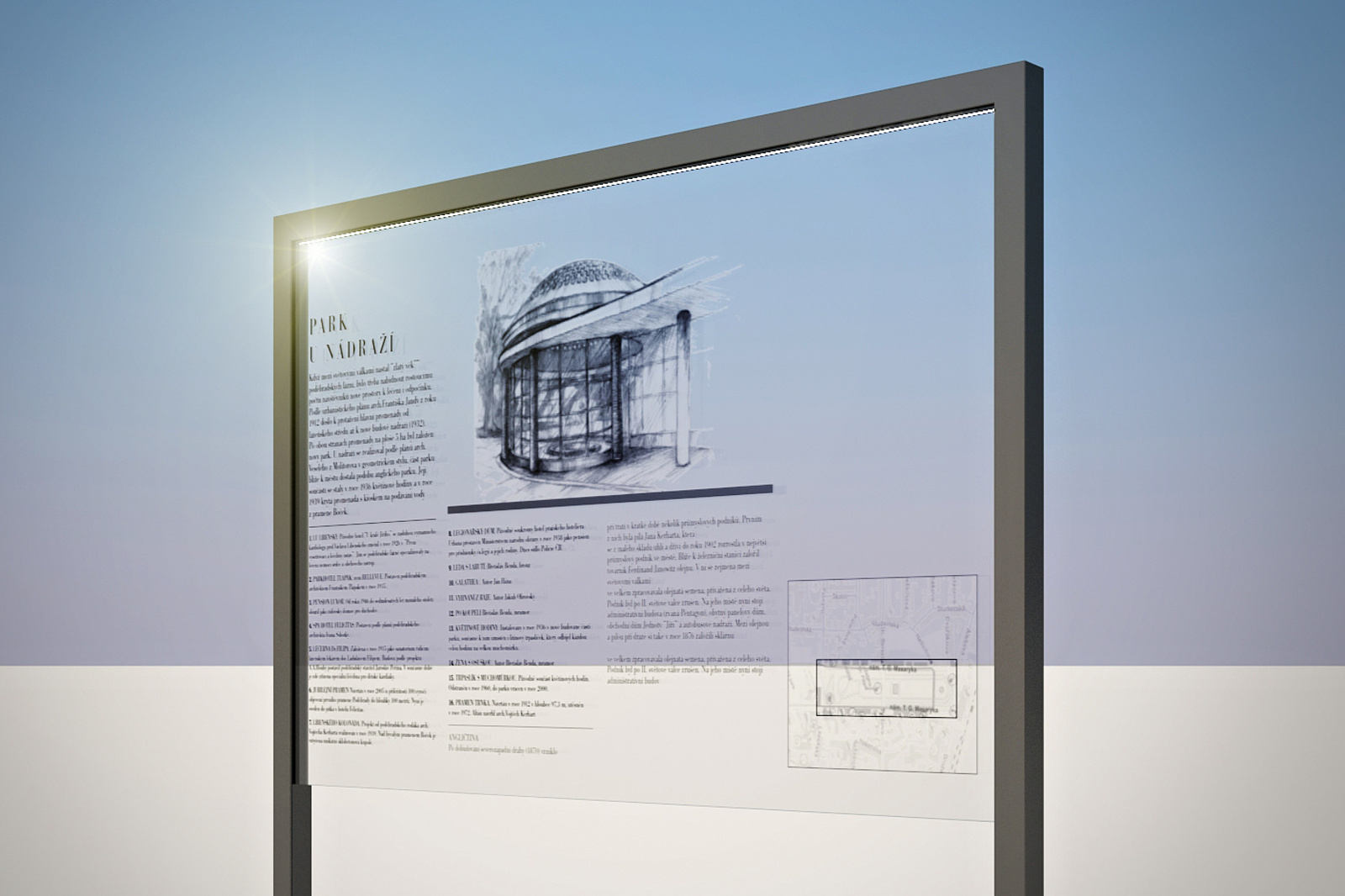

LED lighting
The information board can be completed with LED lighting and thus ensure the readability of texts throughout the day.
3
Permeable board
The hardened glass transmits light, thereby giving the L.X.L. differs from classic sheet metal information carriers.
