RAILA DOG
design Jan Padrnos

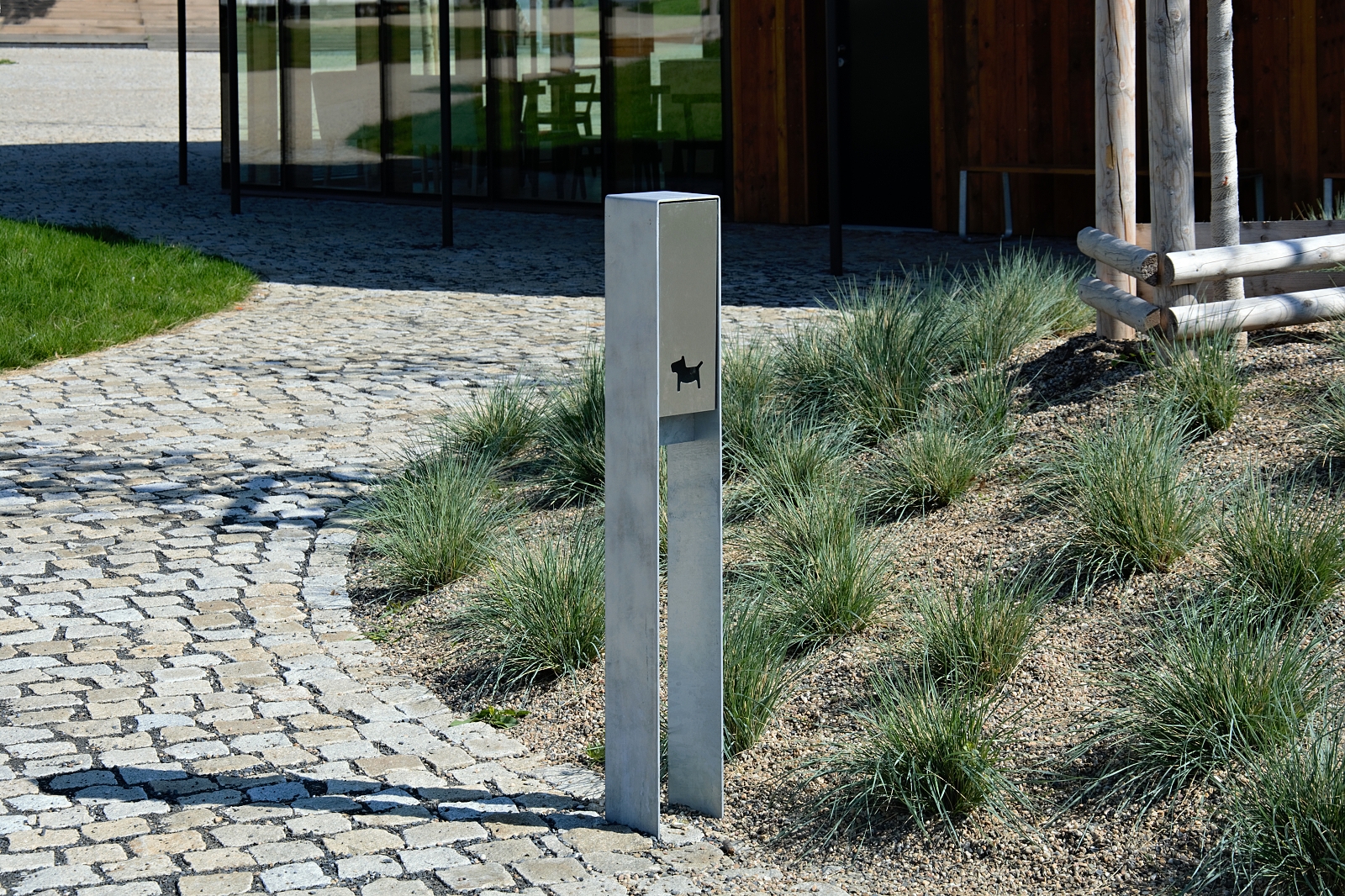

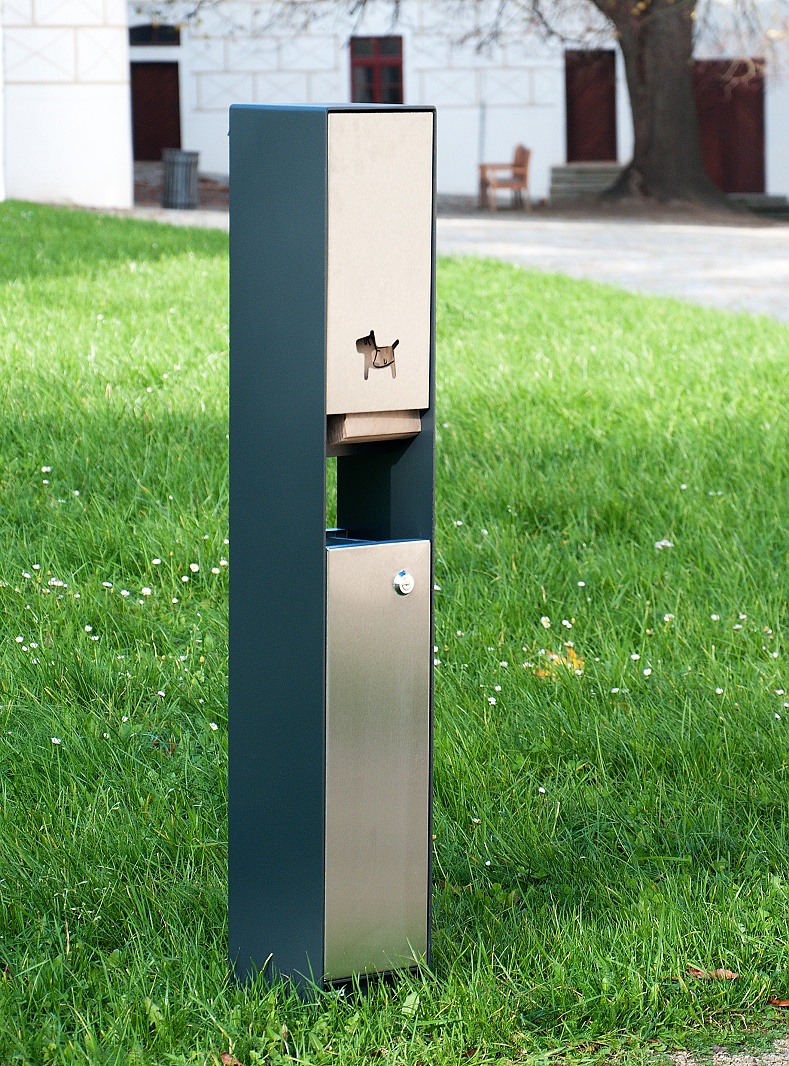

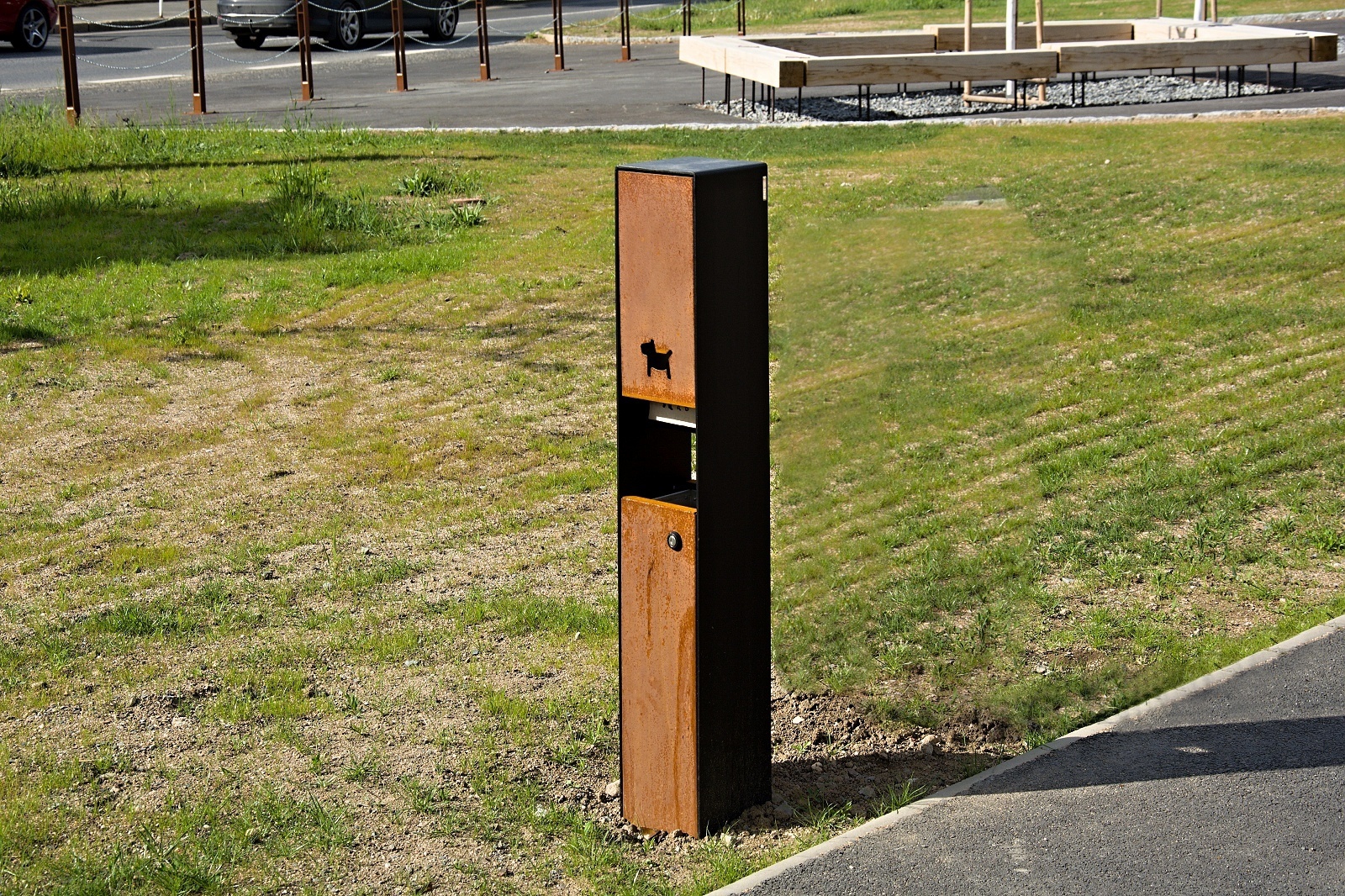

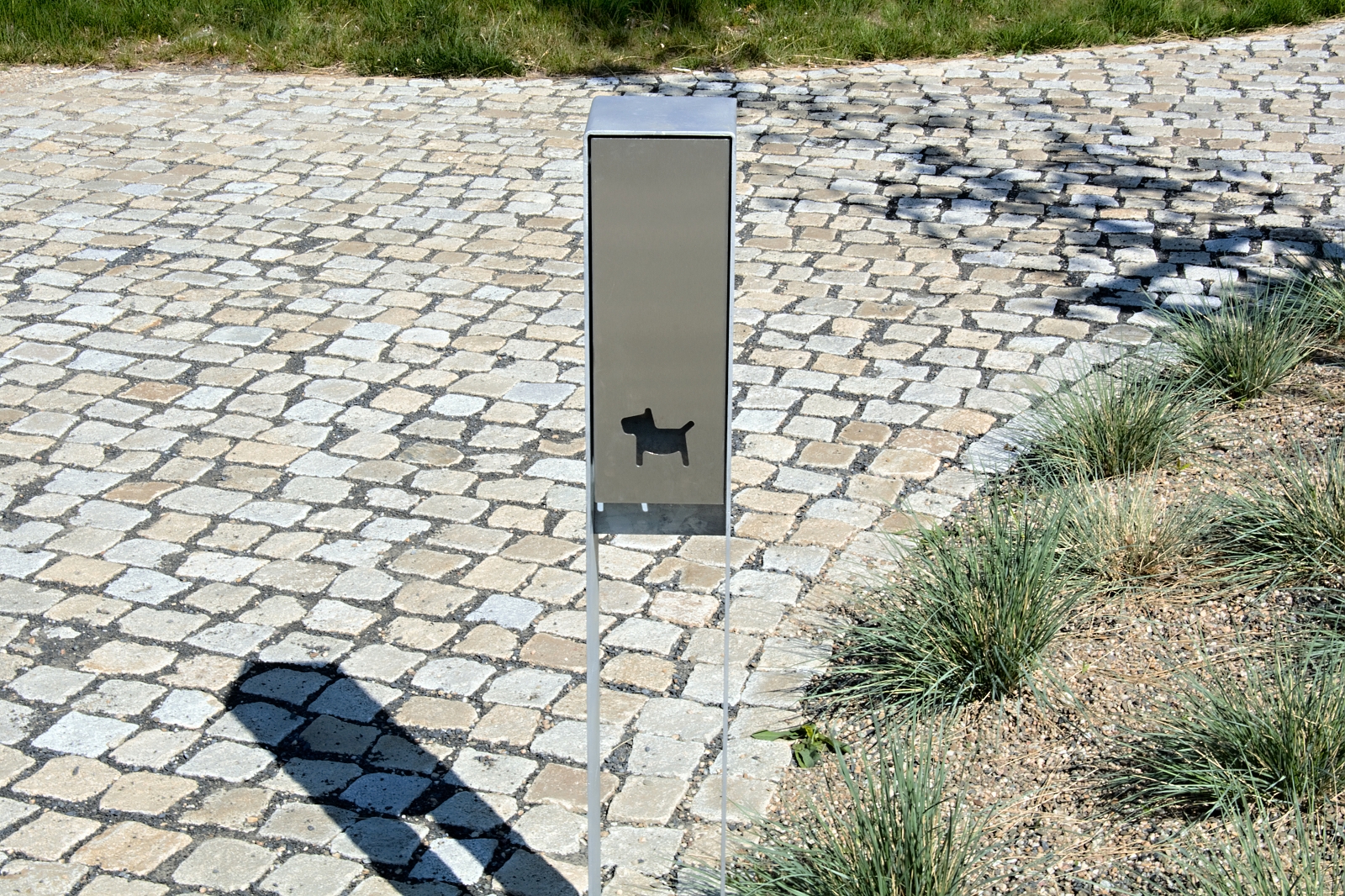

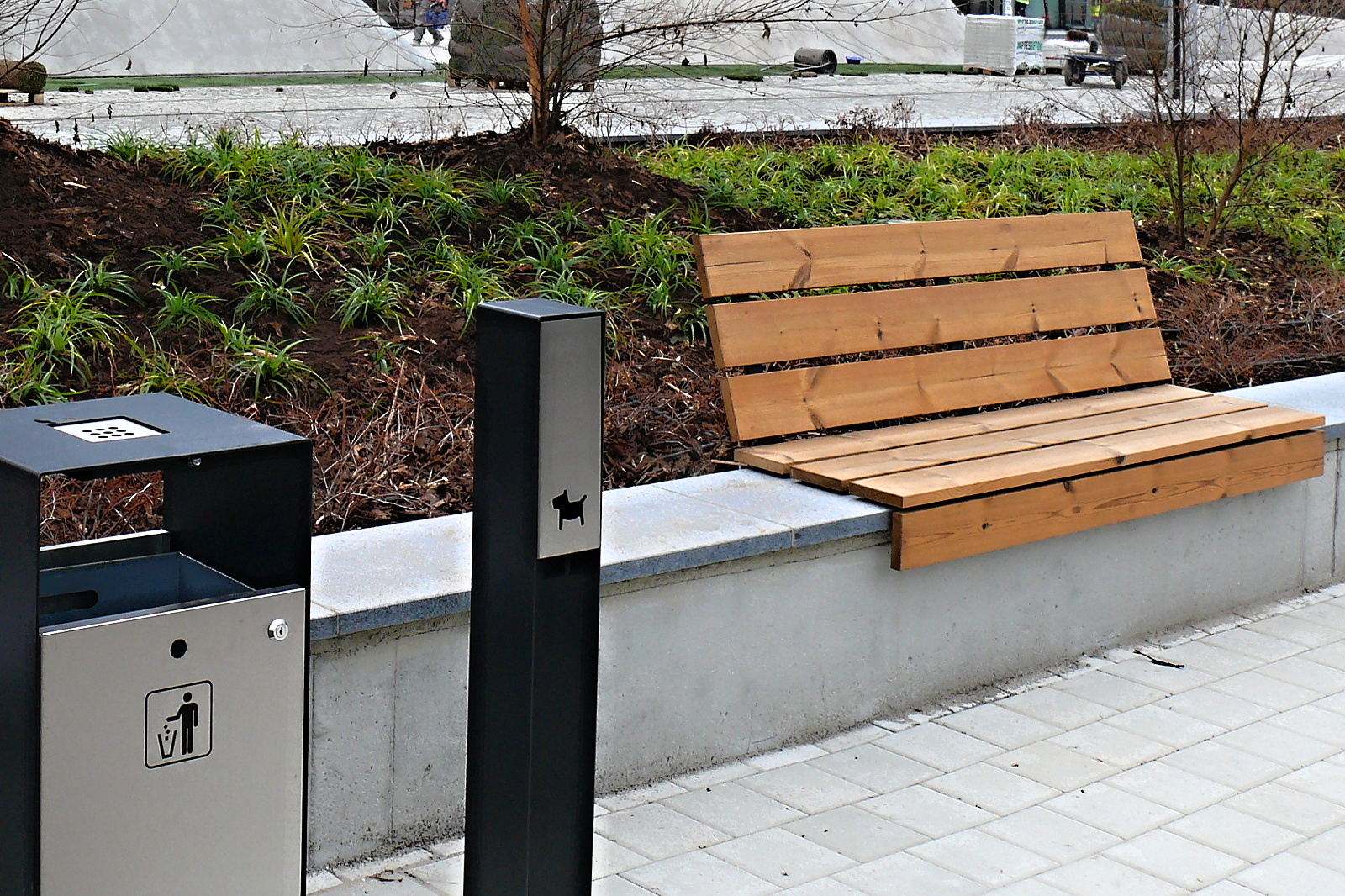

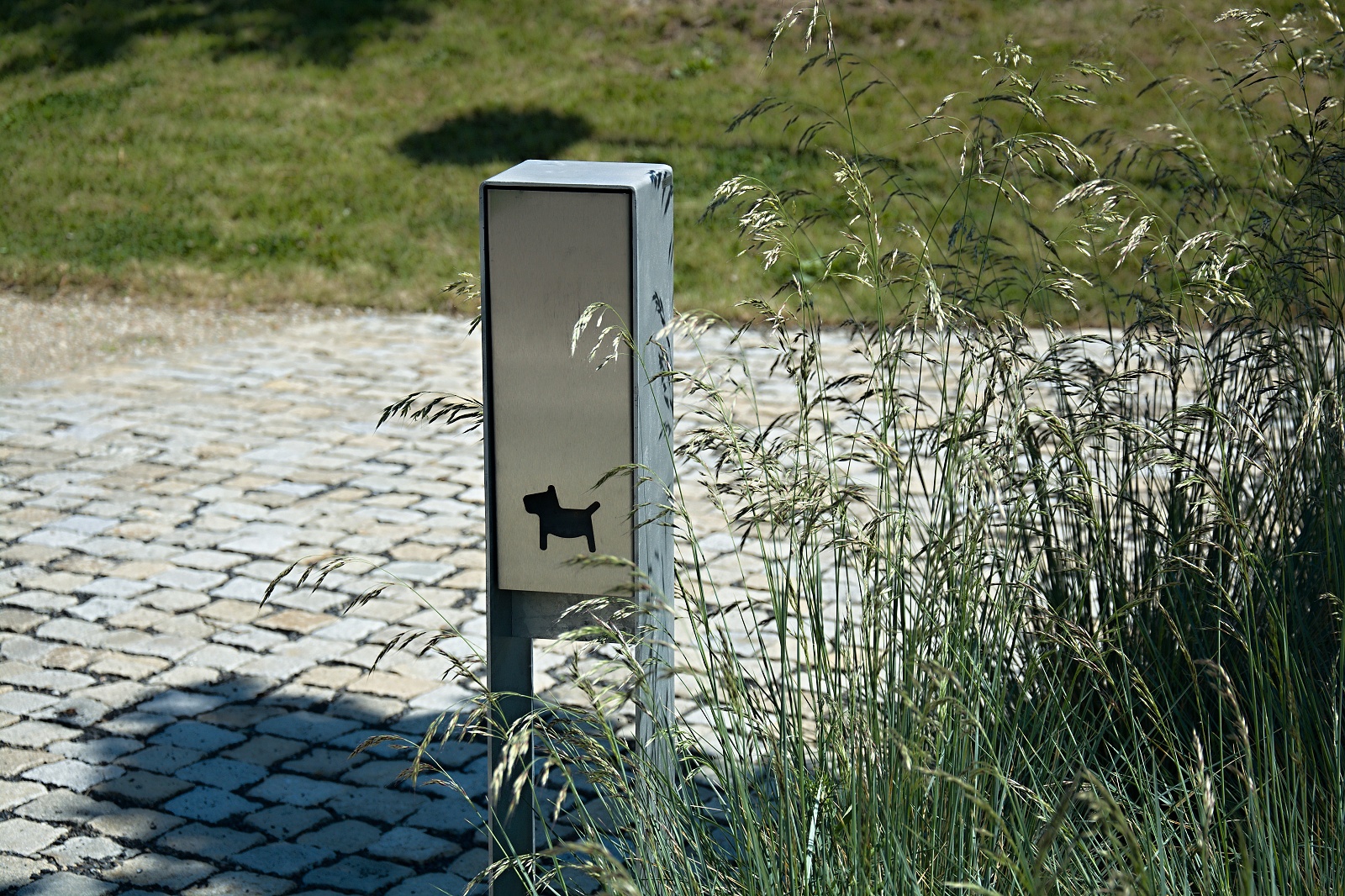

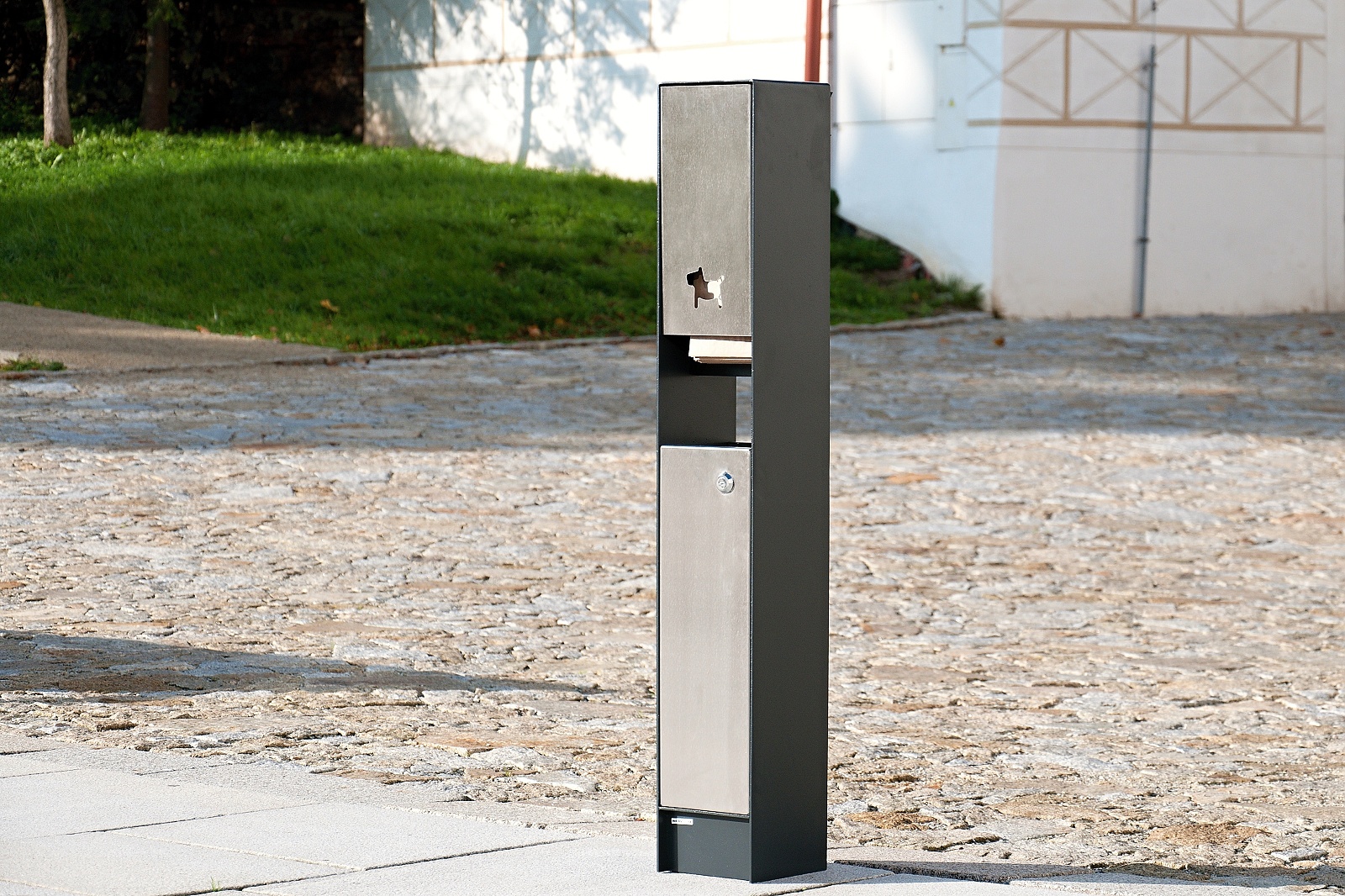

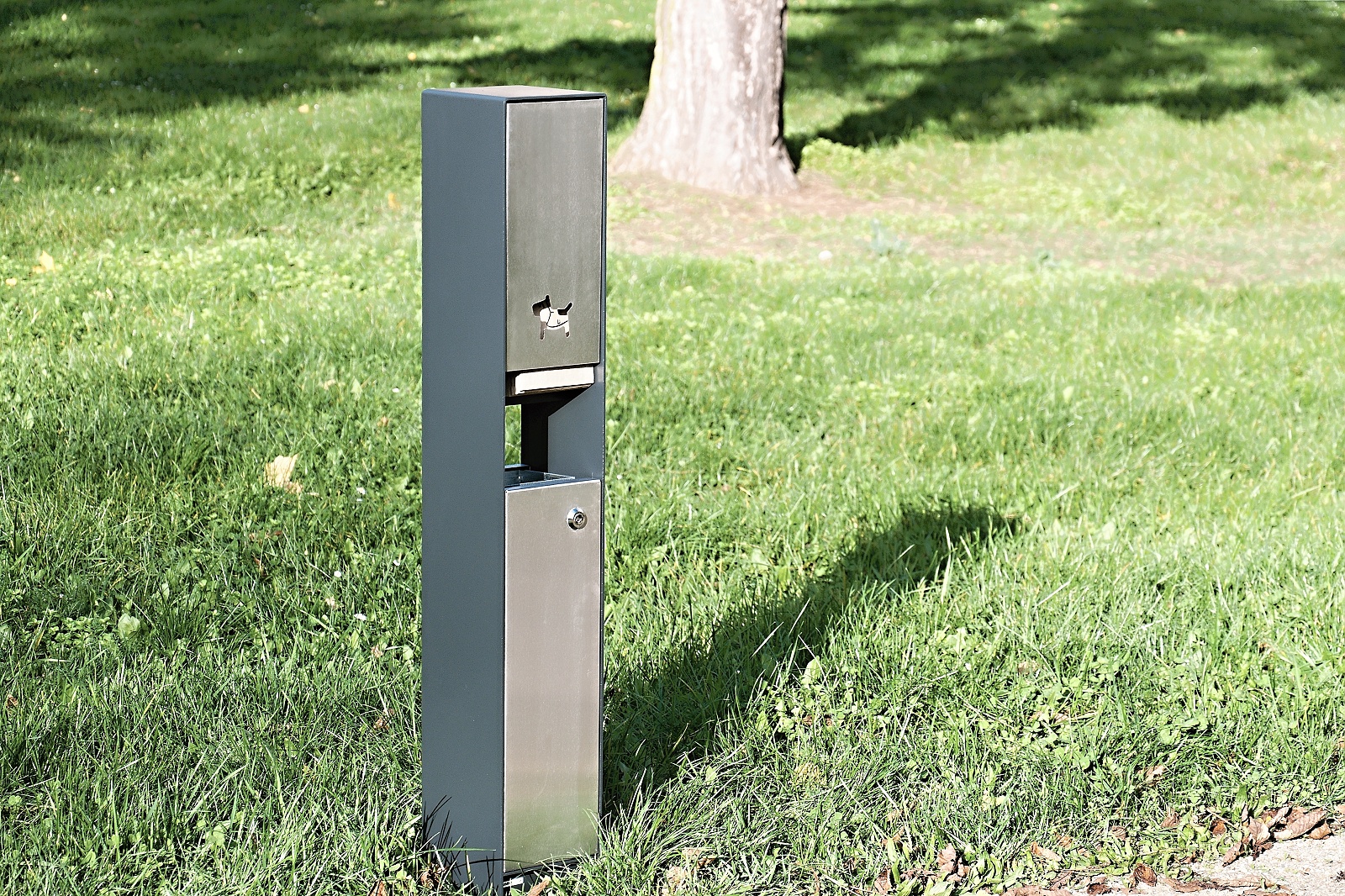

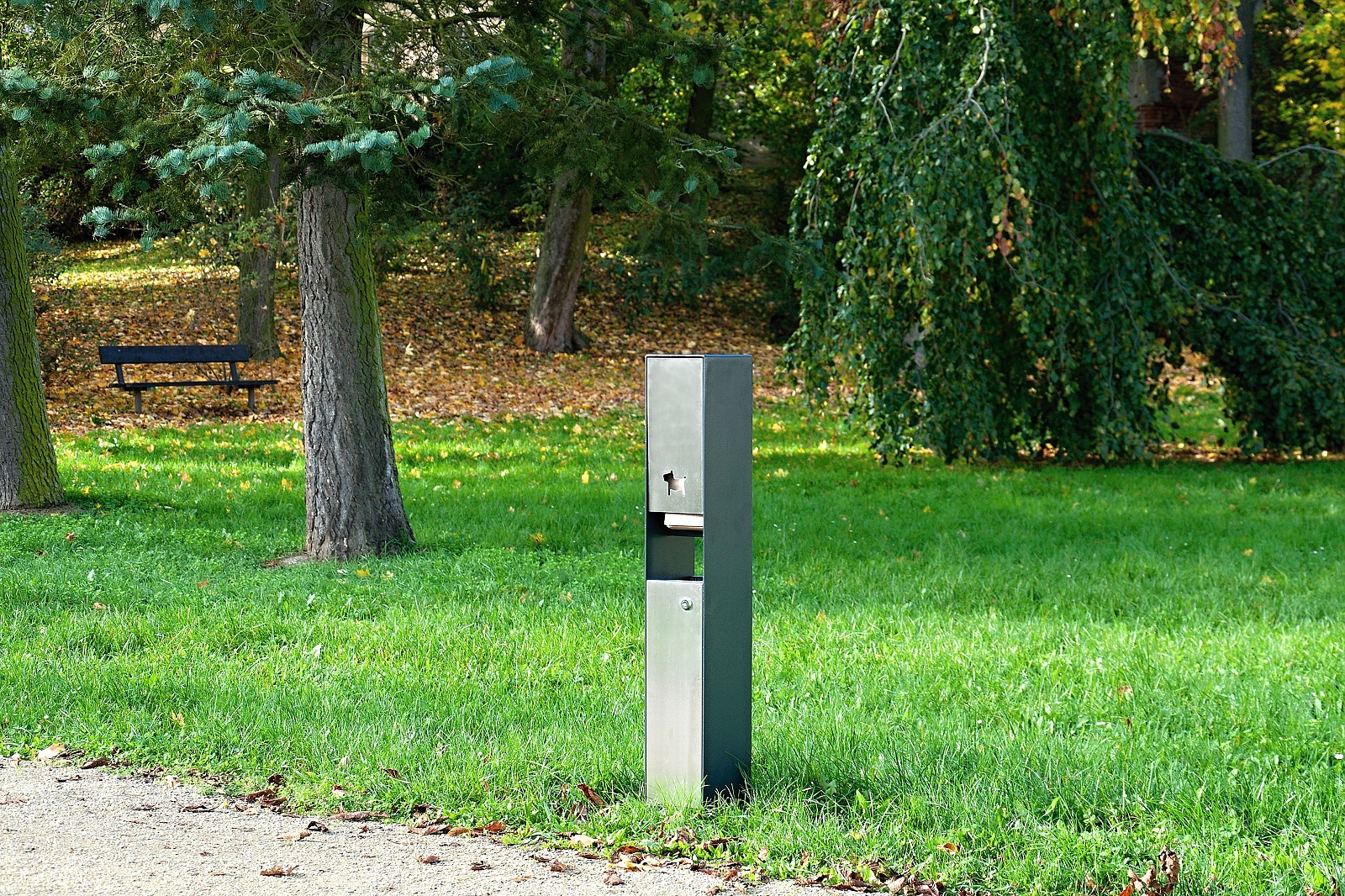

A pet waste bag holder in the design of RAILA litter bin and ashtray. Designed for FEDOG paper bags with an integrated small shovel. Using the SRD2 code, there is a box for paper bags supplied with a galvanized removable container for used bags in the volume of 15 l.
The galvanized steel supporting structure is treated with powder coating. A cover panel made of stainless steel. At the bottom part of the litter bin, there are four holes for anchoring to the base.
SRD1 - Files to download
SRD1 2D drawing (jpg)
SRD1 3D perspective (jpg)
You have to log in for downloading.
RAILA DOG 3D (rar)
SRD1 product data sheet (pdf)
SRD1 anchoring (rar)
Log in
Register
SRD2 - Files to download
SRD2 2D drawing (jpg)
SRD2 3D perspective (jpg)
You have to log in for downloading.
RAILA DOG 3D (rar)
SRD2 product data sheet (pdf)
SRD2 anchoring (rar)
Log in
Register
Design based on type
SRD1
SRD2
Metal parts options
Dimensions L×W×H
140×140×1060 mm / 15 kg
180×180×1160 mm / 20 kg / 15 l

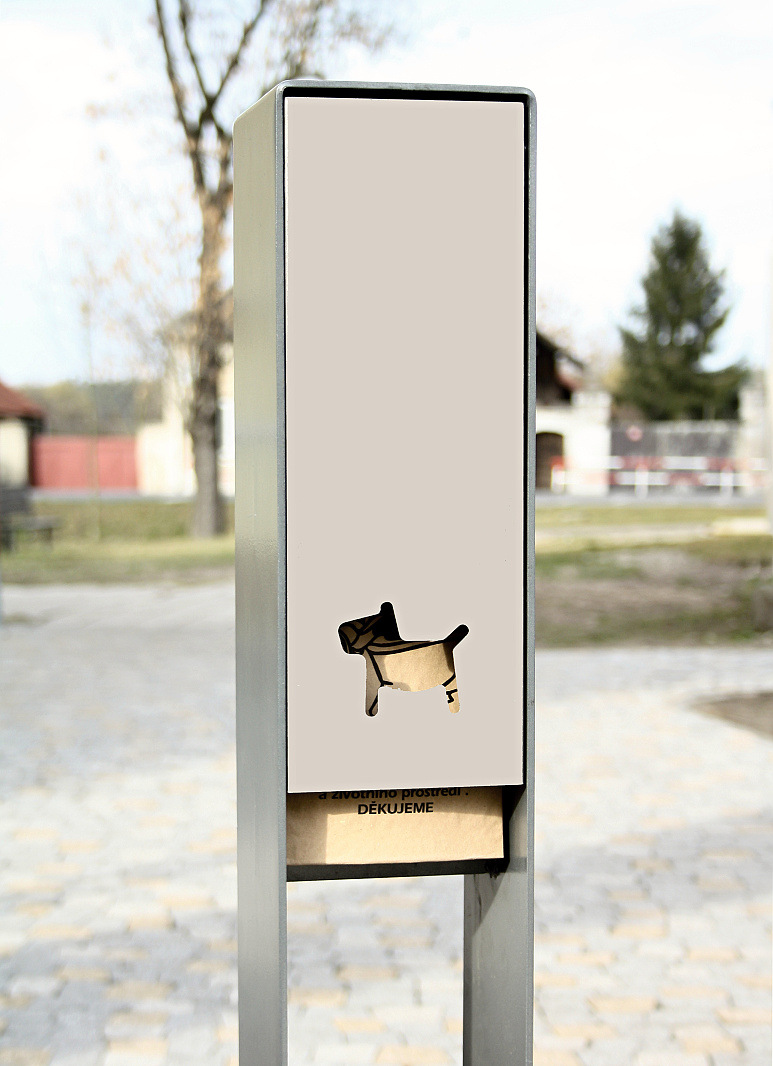

The front panel of RAILA DOG pet waste bag holder is made of stainless steel.
1
Lean construction
The slim design ensures that the bag holder does not interfere with the town square or in the city park.
2
Easy bag replacement
The simple mechanism of paper bag replacement by Czech manufacturer FEDOG.
3

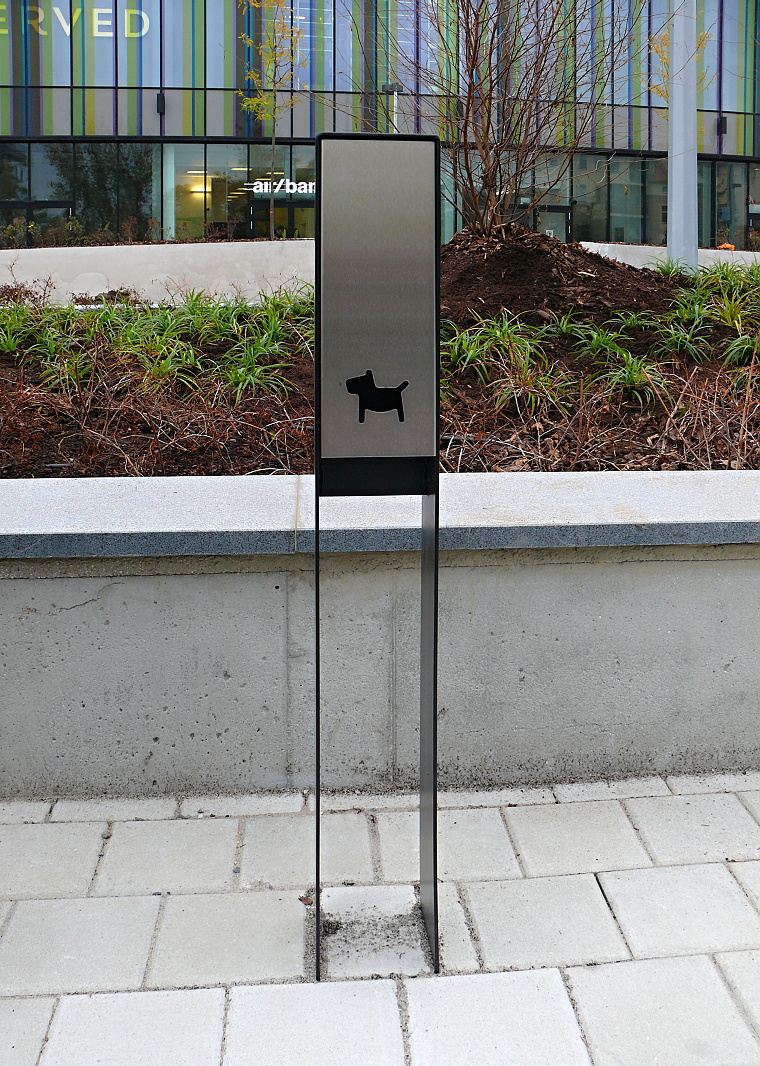

Dog silhouette
The silhouette of the dog allows quick identification of the function of the bag holder and its frequent use.
